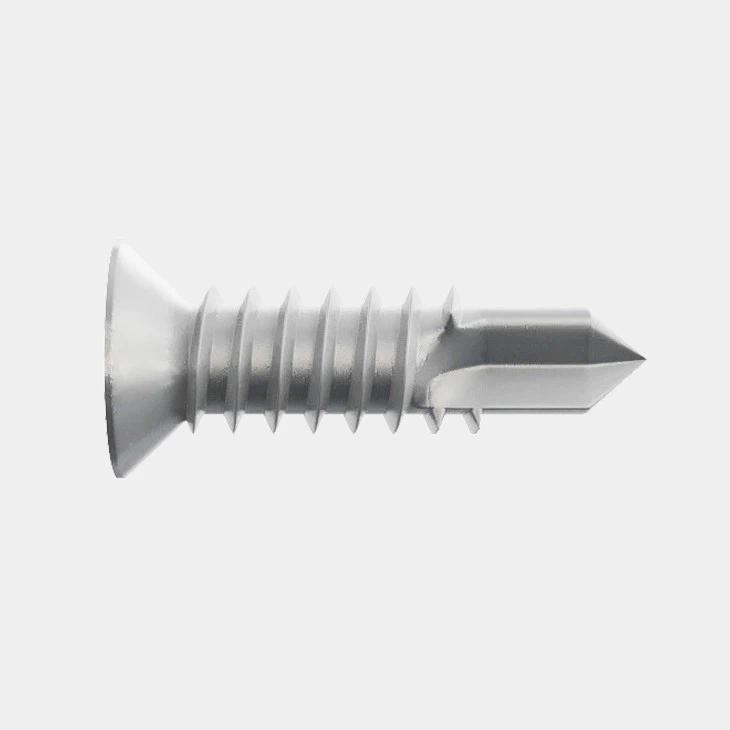

Stainless dade CSK ti a ɛyɛ self drilling screw .

Aya Fasteners (Hebei) Co., Ltd. yɛ wɔn a wɔn ho akokwaw sen biara a wɔyɛ nneɛma ne wɔn a wɔde dade a ɛnyɛ den di CSK ti a wɔde tutu fam no mu biako wɔ China. Yɛsrɛ sɛ, ntwentwɛn wo nan ase sɛ wobɛtɔ Stainless Steel CSK ti a ɛyɛ den a ɛyɛ drilling screw a wɔayɛ wɔ China wɔ ha fi yɛn adwumayɛbea hɔ. Sɛ wopɛ sɛ wo ne yɛn kɔ a, di yɛn ho nkɔmmɔ.





Sɛ́ wiase nyinaa adwumakuw a ɛde ano aduru a wɔde kyekyere nneɛma ho a wɔayɛ no sɛnea wɔpɛ no, Aya som adwuma no nso bɛn adetɔfo te sɛ Aya nneɛma. Efi hia a ɛsɛ sɛ wodi akyi-akɔ soro nnwuma ho asɛm mu no, Aya remmɔ mmɔden biara sɛ ɔbɛboa adetɔfo ma wɔadi ɔhaw biara a ɛsɔre a ɛsɔre no ho dwuma, na ama wɔayi adetɔfo ho dadwen afi hɔ.



Aguade ho nkyerɛkyerɛmu .



---



Aguade no din .	Stainless dade CSK ti a ɛyɛ self drilling screw .
Wɔato din nso .	Stainless countersunk ti a ɛyɛ den sɛ ɛbɛbɔ mu .
Atadeɛ	dade a ɛnyɛ den .
Susudua	DIN 7504 (O) .
Diameter .	St2.9, ST3.5, ST4.2, ST4.8, ST5.5, ST6.3.
Wie	Plain / passivated / customization .
Ti no su .	countersunk ti .
Drive Type .	Mmeamudua a ɛkɔ fam .
Thread type .	Tapping screw asaawa .
Gyinapɛn foforo .	DIN EN ISO 15482, ISO 15482, GB /T 15856.2.

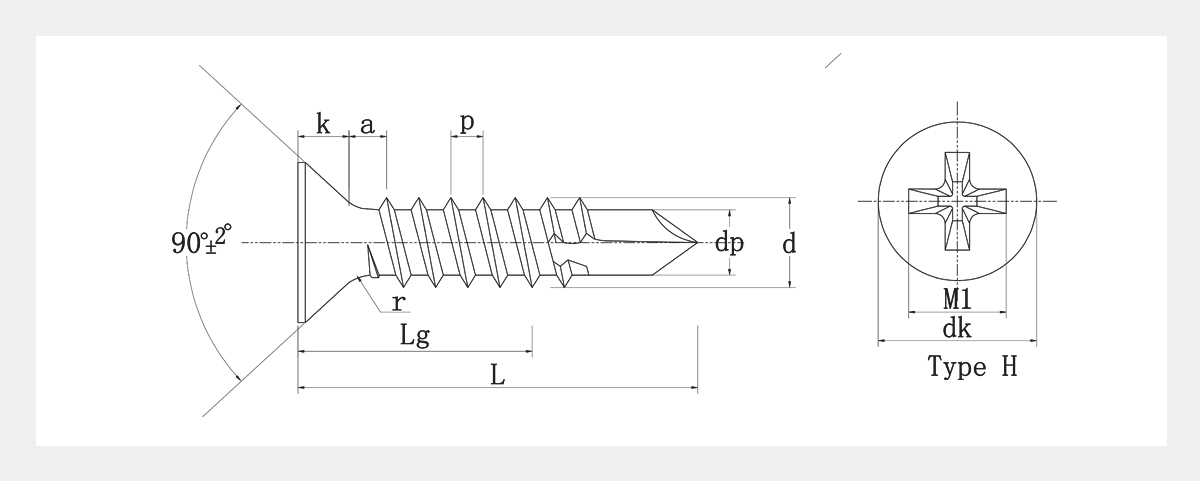

Nsusuwii table .



---



Asaawa kɛse .		ST2.9.	ST3.5.	ST4.2.	ST4.8.	ST5.5.	ST6.3.
P	Prama	1.1	1.3	1.4	1.6	1.8	1.8
a	Max .	1.1	1.3	1.4	1.6	1.8	1.8
DK .	Max .	5.5	7.3	8.4	9.3	10.3	11.3
	min .	5.2	6.9	8	8.9	9.9	10.9
k	Max .	1.7	2.35	2.6	2.8	3	3.15
r	Max .	1.2	1.4	1.6	2	2.2	2.4
socket no.		1	2	2	2	3	3
M1		3.2	4.4	4.6	5.2	6.6	6.8
M2		3.2	4.3	4.6	5.1	6.5	6.8
DP .		2.3	2.8	3.6	4.1	4.8	5.8
Drilling range(thickness) .		0.7~1.9	0.7~2.25	1.75~3	1.75~4.4	1.75~5.25	2~6





Aguade ho nsɛm .



---





Mfaso a ɛwɔ nneɛma a wɔyɛ so .



---





Mfaso a ɛwɔ dade a ɛnyɛ den so CSK ti a ɛyɛ nkuruwankuruwa .



---



Porrosion Resistance: Wɔde dade a ɛnyɛ den a ɛyɛ den a ɛyɛ papa na ɛyɛe, na saa nkɔnsɔnkɔnsɔn yi tumi gyina nkataso ne nsɛe ano kɛse, na ɛma ɛyɛ papa sɛ wɔde bedi dwuma wɔ mmeae a ɛyɛ den, a po ne abɔnten so nneɛma ka ho.

Efficient drilling and fastening: The self-drilling feature no yi hia a ehia sɛ wɔyɛ pre-drilling, bere ne mmɔdenbɔ a wɔkora so bere a wɔde rehyɛ mu no fi hɔ. CSK (Countersunk) ti nhyehyɛe no ma skru no tumi tra flush ne surface ma ɛyɛ fɛ na ɛyɛ professional finish.

Durase ne ahoɔden: Stainless steel ma ahoɔden a ɛkyɛn so a ɛyɛ den na ɛyɛ den, na ɛma ɛyɛ adwuma tenten-adwumayɛ a ɛtra hɔ kyɛ wɔ adesoa tebea ahorow mu. Nkyene a wɔde petepete so sɔhwɛ no betumi atra hɔ bɛboro nnɔnhwerew 1000 na ama wɔadi tebea horow ahiade ho dwuma.

Nneɛma ahorow pii a wɔde di dwuma: AYA de Self-atuo nkɔnsɔnkɔnsɔn a ɛfata ma nnwuma ahorow, a adansi, kar, ne ɛlɛtrɔnik mfiri ka ho ma. Yɛn nhyehyɛe a wɔayɛ no sɛnea wopɛ no di ahiade pɔtee bi ho dwuma, na ɛma adwumayɛ a wotumi de ho to so wɔ hann mu-ADWUMA NE AHYƐDE-ADWUMA ADWUMA.

Aesthetic and functional design: Sɛ wɔde ayaw a ɛho tew na ɛyɛ fɛ wie a, aya screws de afɛfɛde, ahobammɔ, ne dwumadi a ɛkari pɛ ma, na ɛma ɛyɛ nea eye ma nnwuma a ɛho hia, a ɛka ho ne sɛnea ɛtra hɔ kyɛ.



Nhwehwɛmu a ɛyɛ papa .



---





Packaging & Container a Wɔde Gu Mu .



---





Nsɛm a wɔde di dwuma .



---





Adɛn nti na Aya?



---



AYA de nnwuma a ɛyɛ soronko ma 1000+ asɔremma a wofi wiase nyinaa afe biara, a ɛwɔ nkɔnsɔnkɔnsɔn som ano aduru nhyehyɛe soronko, nea ehia ara ne sɛ wobɛbɔ mouse no so na woanya ano aduru a wɔde kyekyere nneɛma a ɛyɛ soronko no na woanya ɔpon-akɔ{2}}pon so nnwuma mu.
