Aya Fasteners Akwankyerɛ|Dɛn nti na ɛsɛ sɛ wode slotted round head machine screws di dwuma?
May 30, 2023
Wɔayɛ slotted round head machine screws no sɛnea ɛbɛyɛ a ɛne ASME specifications bɛyɛ pɛ na ɛwɔ akɛse a efi 2# kosi 1/2. Sɛ wode saa nkɔnsɔnkɔnsɔn yi rehyɛ mu a, wubetumi de screwdriver a ɛwɔ ti a ɛyɛ tratraa anaasɛ ɛyɛ ahinanan adi dwuma. Wɔtaa de mfiri nkɔnsɔnkɔnsɔn a ɛwɔ ti a ɛwɔ ti so di dwuma de ka nnuaba ho, ɛwom sɛ ebia wɔde bɛkɔ ntokuru a wɔabɔ so nso mu de. Wɔ wiase ankasa mu no, ɛda adi kɛse sɛ obi beba wɔn so wɔ wɔn akwan ketewaa bi so, a wonim no sɛ nkɔnsɔnkɔnsɔn anaasɛ, sɛnea ɛbɛyɛ a wɔbɛkwati adwene mu naayɛ a ɛho nhia no, mfiri nkɔnsɔnkɔnsɔn. Nsakraeɛ anan a ɛda nsow a ɛwɔ slotted round-ti mfiri nkɔnsɔnkɔnsɔn mu na ɛwɔ hɔ: kɔbere, silicon kɔbere, zinc-aduru a ɛnyɛ den, ne dadeɛ a ɛnyɛ den, sɛdeɛ ɛteɛ biara.
Mfiri a wɔde twitwiw nneɛma mu no wɔ ti, akɛse, ne ne tenten ahorow ahorow a wɔde bedi dwuma wɔ mfiri a ɛwɔ afã horow pii mu. Saa nkɔnsɔnkɔnsɔn yi ho hia ma nneɛma a wɔyɛ efisɛ ɛyɛ den na ɛyɛ den wɔ ɔkwan bi so a ɛnyɛ bere nyinaa na fixings afoforo ntumi nhyia. Afei nso, mpɛn pii no, wohia torque kakraa bi a wɔde bɛto mu sen nnuaba a ne kɛse yɛ pɛ, na sɛ wɔyɛ wie a, ɛyɛ fɛ.

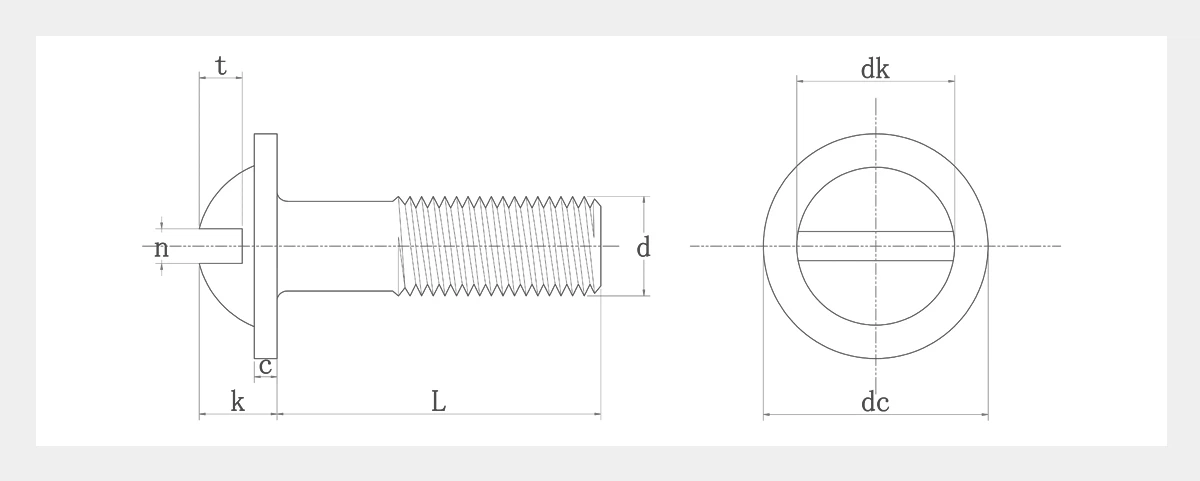

Slotted kurukuruwa ti afiri screws .Nsusuwii Table(ASME B 18.6.3) .
| Asaawa kɛse . d |
2# | 3# | 4# | 5# | 6# | 7# ② | 8# | 10# | 12# | 14# ② | |
| d | Nominal size . | 0.086 | 0.099 | 0.112 | 0.125 | 0.138 | 0.151 | 0.164 | 0.19 | 0.216 | 0.242 |
| PP . | UNC . | 56 | 48 | 40 | 40 | 32 | - | 32 | 24 | 24 | - |
| DK . | Ref. | 0.136 | 0.156 | 0.177 | 0.198 | 0.218 | 0.238 | 0.259 | 0.3 | 0.341 | 0.382 |
| DC . | Max . | 0.202 | 0.232 | 0.261 | 0.291 | 0.321 | 0.35 | 0.38 | 0.439 | 0.498 | 0.558 |
| min . | 0.186 | 0.215 | 0.243 | 0.272 | 0.301 | 0.33 | 0.358 | 0.416 | 0.473 | 0.531 | |
| k | Max . | 0.062 | 0.07 | 0.079 | 0.088 | 0.096 | 0.105 | 0.113 | 0.13 | 0.148 | 0.165 |
| min . | 0.05 | 0.058 | 0.067 | 0.075 | 0.084 | 0.092 | 0.101 | 0.118 | 0.134 | 0.151 | |
| c | Ref. | 0.03 | 0.03 | 0.03 | 0.04 | 0.04 | 0.04 | 0.04 | 0.05 | 0.05 | 0.05 |
| n | Max . | 0.031 | 0.035 | 0.039 | 0.043 | 0.048 | 0.048 | 0.054 | 0.06 | 0.067 | 0.075 |
| min . | 0.023 | 0.027 | 0.031 | 0.035 | 0.039 | 0.039 | 0.045 | 0.05 | 0.056 | 0.064 | |
| t | Max . | 0.037 | 0.042 | 0.048 | 0.053 | 0.058 | 0.06 | 0.067 | 0.071 | 0.085 | 0.095 |
| min . | 0.03 | 0.034 | 0.038 | 0.041 | 0.043 | 0.045 | 0.051 | 0.055 | 0.067 | 0.08 | |
| Asaawa kɛse . d |
1/4 | 16# | 18# | 5/16 | 20# ② | 24# ② | 3/8 | 7/16 | 1/2 | |
| d | Nominal size . | 0.25 | 0.268 | 0.294 | 0.3125 | 0.32 | 0.372 | 0.375 | 0.4375 | 0.5 |
| PP . | UNC . | 20 | - | - | 18 | - | - | 16 | 14 | 13 |
| DK . | Ref. | 0.396 | 0.423 | 0.661 | 0.494 | 0.505 | 0.587 | 0.593 | 0.691 | 0.79 |
| DC . | Max . | 0.576 | 0.617 | 0.676 | 0.719 | 0.736 | 0.854 | 0.861 | 1.004 | 1.146 |
| min . | 0.548 | 0.588 | 0.646 | 0.687 | 0.703 | 0.818 | 0.825 | 0.963 | 1.101 | |
| k | Max . | 0.17 | 0.182 | 0.199 | 0.211 | 0.216 | 0.251 | 0.253 | 0.294 | 0.335 |
| min . | 0.157 | 0.168 | 0.185 | 0.197 | 0.202 | 0.236 | 0.238 | 0.278 | 0.319 | |
| c | Ref. | 0.05 | 0.06 | 0.06 | 0.06 | 0.06 | 0.06 | 0.06 | 0.07 | 0.09 |
| n | Max . | 0.075 | 0.075 | 0.084 | 0.084 | 0.084 | 0.094 | 0.094 | 0.094 | 0.106 |
| min . | 0.064 | 0.064 | 0.072 | 0.072 | 0.072 | 0.081 | 0.081 | 0.081 | 0.091 | |
| t | Max . | 0.098 | 0.105 | 0.113 | 0.118 | 0.125 | 0.137 | 0.139 | 0.165 | 0.18 |
| min . | 0.083 | 0.088 | 0.094 | 0.1 | 0.115 | 0.115 | 0.117 | 0.14 | 0.155 | |
| 2, 7#, 14#, 16#, 18#, 20#, 24# yɛ ma tapping screws nkutoo. 5, afiri skru tenten a ɛyɛ asaawa . 1) Nkɛntɛnso No.5 ne nketewa. Nkrukyire a ne tenten no tenten yɛ pɛ ne ntwemu abiɛsa na ɛyɛ tiaa no, ɛsɛ sɛ ɛyɛ nhama a ɛyɛ pɛ-nhama a ɛtrɛw kɔ abɔnten biako (asen) a ɛwɔ ti no bearing no ani, anaasɛ ɛbɛn, sɛ ɛyɛ yiye a. Nominal lengths a ɛboro diameter abiɛsa, a ɛkɔ na ɛka ho 1-1/8 in., ɛsɛ sɛ ɛyɛ full-form threads a ɛtrɛw kɔ pitches abien (threads) a ɛwɔ bearing surface of ti no so, anaasɛ ɛbɛn, sɛ ɛyɛ yiye a. Ɛsɛ sɛ nkɔnsɔnkɔnsɔn a ne tenten yɛ tenten tenten no, gye sɛ wɔakyerɛ sɛ ɛnyɛ saa, na ɛwɔ asaawa a ɛyɛ pɛpɛɛpɛ a ɛyɛ 1 in. 2) Nkɛntɛnso No.6 ne nketewa. Nkrukyire a ne tenten no tenten yɛ pɛ ne ntwemu abiɛsa na ɛyɛ tiaa no, ɛsɛ sɛ ɛyɛ nhama a ɛyɛ pɛ-nhama a ɛtrɛw kɔ abɔnten biako (asen) a ɛwɔ ti no bearing no ani, anaasɛ ɛbɛn, sɛ ɛyɛ yiye a. Nominal lengths a ɛboro diameter abiɛsa, a ɛkɔ na ɛka ho 2 in., no wɔ twitwiw a edi mũ-nhama a ɛtrɛw kɔ abɔnten abien (threads) a ɛwɔ bearing surface of ti no so, anaasɛ ɛbɛn, sɛ ɛyɛ yiye a. Screws a ne tenten tenten tenten no, ɛsɛ sɛ ɛware a ɛyɛ-form thread a ɛyɛ 1.5 in. no tenten a ɛba fam koraa. 1, nipadua no ntwemu a ɛwɔ mfiri nkɔnsɔnkɔnsɔn a ɛnyɛ trim ti so no rensua sen Class 2A asaawa a ɛwɔ soro no ntwemu a ɛba fam koraa anaasɛ ɛbɛyɛ kɛse sen asaawa no ntwemu titiriw titiriw no. |
||||||||||
Su:
● Slotted round-Mfiri a ɛwɔ ti no taa wɔ ntokuru nketenkete a ɛyɛ pɛpɛɛpɛ sen nneɛma afoforo a wɔde kyekyere nneɛma ho.
● Mpɛn pii no, wɔayɛ sɛ wɔde nneɛma bedi dwuma a tokuru bi wɔ mu a wɔatutu na wɔde asaawa ayɛ dedaw anaasɛ wɔde nut, ne bere dodow no ara, saa na wɔasisi.
● Mpɛn pii no, mfiri nkɔnsɔnkɔnsɔn kura dade afã horow bom denneennen wɔ mfiri anaa ɔdan mu.
● Wɔde dade a ɛnyɛ den, carbon dade, anaa dade a wɔde afra na ɛyɛ.
● Wɔn ho yɛ hyew kɛse.
Mfaso a ɛwɔ slotted kurukuruwa ti afiri screws so .
Slotted round-Head Machine Screws yɛ kɛseɛ ma nnwuma pii ɛfiri sɛ wɔbɛtumi de adi dwuma wɔ akwan pii so. Nneɛma a wɔde siesie dan mu, ɛlɛtrɔnik mfiri a wɔde si dan, kar a wosiesie, nsu a wɔde yɛ adwuma a wosiesie, mfɛnsere a wɔde si hɔ, dade a wɔde yɛ adwuma te sɛ HVAC nhyehyɛe ahorow, ɔpon so hyɛn a wɔde si dan mu, ne nsiesie, nneɛma a wɔde si dan mu, adan a wɔde abo ayɛ te sɛ birikisi adwuma anaa abo afasu, ɔdan atifi a wosiesie anaasɛ nea wɔde si ananmu, adan a wɔde si dan mu anaasɛ nnua a wɔde si dan te sɛ gazebo anaa nnua a wɔde yɛ nneɛma nyinaa a wɔde di dwuma no nyinaa yɛ nea wɔtaa de di dwuma. Wobetumi nso de akura drills ne saw ahorow mu.
Abisadeɛ
Wɔde slotted round-ti mfiri nkɔnsɔnkɔnsɔn a efi AYA fasteners mu na ɛyɛ adwuma wɔ nnwuma a wɔyɛ, telefon so nkitahodi, anyinam ahoɔden, ne kar kanea ho. Wɔka aguadi nneɛma a wɔde di dwuma wɔ ɔkwan a ɛtrɛw so no ho. Nkyene no ti yɛ kurukuruwa, na ti no akyi wɔ anim. Mpɛn pii no, skru no sorokɔ bɛyɛ sɛ biako-afã a ɛwɔ skru no ti no fã. Wɔyɛ frame a ɛwɔ dimensions a ɛho hia ne tensile ahoɔden a ɛkorɔn nyinaa. Ɛsɛ sɛ wutu tokuru wɔ ade no mu ansa na wode saa nkɔnsɔnkɔnsɔn yi adi dwuma.
Esiane sɛ ɛyɛ dade a ɛnyɛ den, carbon dade, anaa dade a wɔde afra mu nti, wɔwɔ corrosion resistance kɛse na ebia wɔde bedi dwuma mpo wɔ asase ase adwuma mu esiane sɛ ɛyɛ den nti. Nea ɛka ho no, ɛma wonya mfaso kɛse a ɛne sɛ ɛbɛyɛ den kɛse wɔ ade a wɔawie no so, a afiri no atirimpɔw mfa ho. Nokwasɛm a ɛyɛ sɛ saa nkɔnsɔnkɔnsɔn yi yɛ mmerɛw sɛ wode besisi hɔ na woayi afi hɔ no yɛ mfaso foforo a ɛwɔ so sɛ wode bedi dwuma. AYA Fasteners tumi wie custom order a ne kɛse te saa bere a ɛhwɛ hu sɛ wɔde ma wɔ bere nhyehyɛe mu no.
Worehwehwɛ nneɛma a wɔde kyekyere nneɛma ho?
Klik ase hɔ na kɔ Aya Fasteners’ Fastener Catalogue a ɛtrɛw, a nea ɛka ho ne nkɔnsɔnkɔnsɔn a ɛkorɔn, bolts, washers, ne nuts products.
