Fie / Nneɛma a wɔyɛ . / Nkɛntɛnso . / Self tapping screws . / Emu nsɛm

Nneɛma a wɔyɛ .

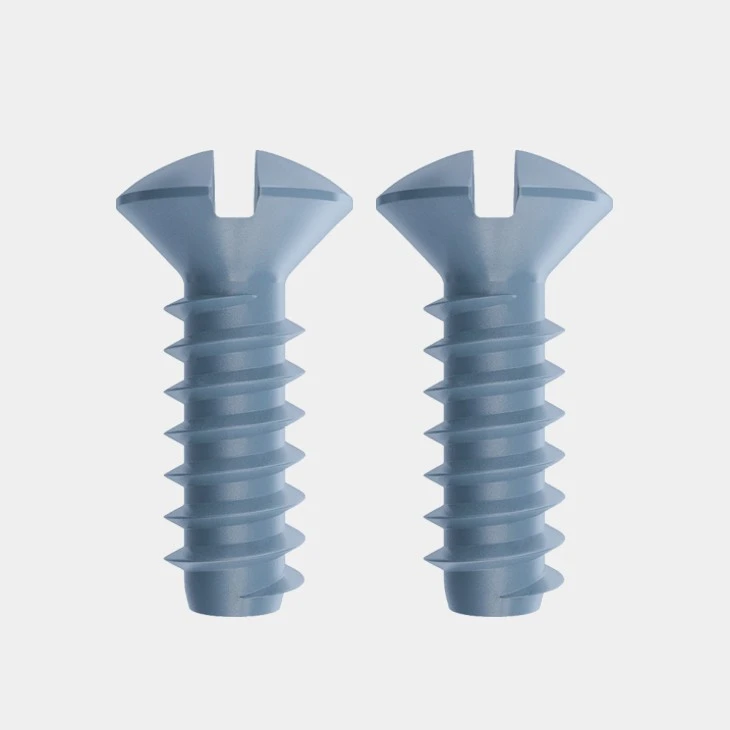

oxide tuntum a wɔama so countersunk nkɔnsɔnkɔnsɔn .

oxide tuntum a wɔama so countersunk nkɔnsɔnkɔnsɔn .

Gyinapɛn: ASME B 18.6.4.
Thread Type: Ɔno ankasa{0}}TWIE NHWEHWƐMU .
Aguadide: oxide tuntum a wɔama so countersunk screws .
Wɔato din nso: Ti a Wɔama So Screw .
Nneɛma a wɔde yɛ: Carbon dade .
Ɔkwan/nsusuwii a ɛwɔ tip: Type Abdiameter: 0#,1#,2#,3#,5#,5#,6#,8#,8#,10#,12,1/4,5/16
Awiei: oxide a ɛyɛ mmerɛw, tuntum, zinc a wɔde adura ho, ɛyɛ den{0}}Film passivated(ZSML), zinc flake, dwetɛ(zfshl), ɔhyew a wɔde ahyɛ galvanized, organic, geomet, dacromet, phosphate, cadmium electroplate, nickel a wɔde adura ho
Gyinapɛn foforo: ISO 1483, DIN 7973, ASME B 18.6.3, ASME B 18.6.5m, JIS B 1115 (O) .
Ti no su: countersunk ti a wɔama so / oval ti .
Drive Type: Mmere a ɛwɔ mu .
MOQ: 1000kgs .
Bere a wɔde di kan: nnafua 30 kosi 60 .

Send Inquiry .

Nneɛma a wɔde yɛ adwuma .

Aya Fasteners (Hebei) Co., Ltd. yɛ wɔn a wɔn ho akokwaw sen biara no mu biako na wɔde oxide tuntum a wɔama so countersunk screws wɔ China no mu biako. Yɛsrɛ sɛ ntwentwɛn wo nan ase sɛ wobɛtɔ oxide tuntum a ɛkorɔn a wɔama so countersunk screws a wɔayɛ wɔ China wɔ ha fi yɛn adwumayɛbea hɔ. Sɛ wopɛ sɛ wo ne yɛn kɔ a, di yɛn ho nkɔmmɔ.

Black Oxide Raised Countersunk Screws-AYA Fasteners-AYA

Sɛ́ wiase nyinaa adwumakuw a ɛde ano aduru a wɔde kyekyere nneɛma ho a wɔayɛ no sɛnea wɔpɛ no, Aya som adwuma no nso bɛn adetɔfo te sɛ Aya nneɛma. Efi hia a ɛsɛ sɛ wodi akyi-akɔ soro nnwuma ho asɛm mu no, Aya remmɔ mmɔden biara sɛ ɔbɛboa adetɔfo ma wɔadi ɔhaw biara a ɛsɔre a ɛsɔre no ho dwuma, na ama wɔayi adetɔfo ho dadwen afi hɔ.

Aguade ho nkyerɛkyerɛmu .

Aguade no din .	oxide tuntum a wɔama so countersunk nkɔnsɔnkɔnsɔn .
Wɔato din nso .	Ti a wɔama so a ɛyɛ screw .
Atadeɛ	Carbon dade .
Susudua	ASME B 18.6.4.
Ɔkwan/nsusuwii a ɛwɔ tip .	Type AB .
Diameter .	0#,1#,2#,3#,4#,5#,6#,7#,8#,10#,12#,1/4,5/16
Wie	oxide a ɛnyɛ den, tuntum, zinc a wɔde adura ho, a ɛyɛ den-Film passivated(ZSML), zinc flake, dwetɛ(zfshl), ɔhyew a wɔde ahyɛ mu, organic, geomet, dacromet, phostrating, cadmium electroplate, nickel a wɔde adura ho
Gyinapɛn foforo .	DIN 7983, ASME B 18.6.3, ASME B 18.6.4, ASME B 18.6.5m, JIS B 1122 (O) .
Ti no su .	countersunk ti a wɔama so / oval ti .
Drive Type .	mu slot .
Thread type .	Self-Trapping screw asaawa .

Nsusuwii table .

Black Oxide Raised Countersunk Screws-AYA Fasteners-2D

nominal diameter . d		0#	1#	2#	3#	4#	5#	6#	7#	8#	10#	12#	1/4	5/16
d	Nominal size .	0.0600	0.0730	0.0860	0.0990	0.1120	0.1250	0.1380	0.1510	0.1640	0.1900	0.2160	0.2500	0.3125
L	min .	3/16	3/16	3/16	7/32	1/4	1/4	5/16	3/8	7/16	1/2	9/16	5/8	13/16
dk	Max .	0.112	0.137	0.162	0.187	0.212	0.237	0.262	0.287	0.312	0.362	0.412	0.477	0.597
dk	min .	0.096	0.120	0.144	0.167	0.191	0.215	0.238	0.262	0.285	0.333	0.380	0.442	0.556
k	Ref.	0.035	0.043	0.051	0.059	0.067	0.075	0.083	0.091	0.100	0.116	0.132	0.153	0.191
f	Ref.	0.021	0.025	0.029	0.033	0.037	0.041	0.045	0.049	0.052	0.060	0.068	0.079	0.099
h	Ref.	0.056	0.068	0.080	0.092	0.104	0.116	0.128	0.140	0.152	0.176	0.200	0.232	0.290
n	Max .	0.023	0.026	0.031	0.035	0.039	0.043	0.048	0.048	0.054	0.060	0.067	0.075	0.084
n	min .	0.016	0.019	0.023	0.027	0.031	0.035	0.039	0.039	0.045	0.050	0.056	0.064	0.072
t	Max .	0.030	0.038	0.045	0.052	0.059	0.067	0.074	0.081	0.088	0.103	0.117	0.136	0.171
t	min .	0.025	0.031	0.037	0.043	0.049	0.055	0.060	0.066	0.072	0.084	0.096	0.112	0.141

Aguade ho nsɛm .

Black Oxide Raised Countersunk Screws-AYA Fasteners-detail

Mfaso a ɛwɔ nneɛma a wɔyɛ so .

Black Oxide Raised Countersunk Screws-AYA Fasteners-advanatage

Mfaso a ɛwɔ oxide tuntum a wɔama so countersunk screws so .

1. Nneɛma a ɛkorɔn-Nneɛma pa a ɛwɔ oxide tuntum a wɔde kata so no ma ne kyɛ no yɛ kɛse.

2. oxide tuntum a wɔde kata so no ma ɛyɛ nea ɛko tia nsɛe kɛse na ɛtra hɔ kyɛ sen nneɛma afoforo.

3. Saa nkɔnsɔnkɔnsɔn yi na wɔde kyekyere nnua no kɛse.

4. CounterSunk no ma extra grip ne surface saa skru yi mu den.

5. Ti a wɔama so a ɛwɔ baabi a wɔde skru a emu dɔ fi mu no ma ɛyɛ mmerɛw sɛ wobɛkyekyere wo ho na woanhyɛ no den.

7. AYA tumi de ano aduru a ɛyɛ nwonwa a wɔayɛ no sɛnea wɔpɛ no ma .

8. Mprempren, Aya som mmeae ahorow te sɛ Asia Kesee Fam Apuei, Amerika Atifi fam, Amerika Kesee Fam, ne Europa a nneɛma ahorow bɛboro 13000 na ɛwɔ mu.

Nhwehwɛmu a ɛyɛ papa .

Quality Check-AYA Fasteners

Packaging & Container a Wɔde Gu Mu .

Packing-AYA Fasteners

Nsɛm a wɔde di dwuma .

Usage-AYA Fasteners

Dɛn nti na ɛsɛ sɛ wopaw Aya?

AYA de nnwuma a ɛyɛ soronko ma 1000+ asɔremma a wofi wiase nyinaa afe biara, a ɛwɔ nkɔnsɔnkɔnsɔn som ano aduru nhyehyɛe soronko, nea ehia ara ne sɛ wobɛbɔ mouse no so na woanya ano aduru a wɔde kyekyere nneɛma a ɛyɛ soronko na woanya ɔpon-to{2}}pon so nnwuma no mu anigye.
