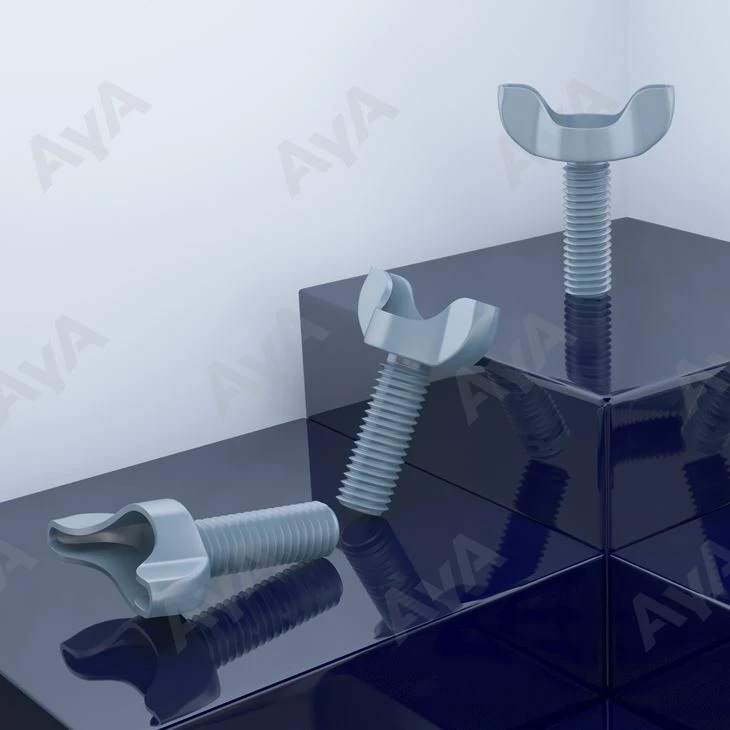

Wing ti bolt .
Gyinapɛn: ANSI/ASME B 18.17.
Thread Type: UNC Nhama .
Aguadide: ntaban ti bolt .
Wɔtoo din nso: Wing thumb screw .
Nneɛma a wɔde yɛ: Carbon dade .
Ne kɛse: 6#,8#,10#,12,1/4,5/16,3/8.
Awiei: oxide a ɛyɛ mmerɛw, tuntum, zinc a wɔde adura ho, ɛyɛ den{0}}Film passivated(ZSML), zinc flake, dwetɛ(zfshl), ɔhyew a wɔde ahyɛ galvanized, organic, geomet, dacromet, phosphate, cadmium electroplate, nickel a wɔde adura ho
Ti no su: Oval ti .
Drive Type: Ne nsa .
Gyinapɛn foforo: DIN 316, DIN 318, JIS B 1184 .
MOQ: 1000kgs .
Bere a wɔde di kan: nnafua 30 kosi 60 .
Nneɛma a wɔde yɛ adwuma .
Aya Fasteners (Hebei) Co., Ltd. yɛ wɔn a wɔn ho akokwaw sen biara a wɔyɛ wing head bolt wɔ China no mu biako. Yɛsrɛ sɛ ntwentwɛn wo nan ase sɛ wobɛtɔ ntaban ti bolt a ɛkorɔn a wɔayɛ wɔ China wɔ ha fi yɛn adwumayɛbea hɔ. Sɛ wopɛ sɛ wo ne yɛn kɔ a, di yɛn ho nkɔmmɔ.
Sɛ́ wiase nyinaa adwumakuw a ɛde ano aduru a wɔde kyekyere nneɛma ho a wɔayɛ no sɛnea wɔpɛ no, Aya som adwuma no nso bɛn adetɔfo te sɛ Aya nneɛma. Efi hia a ɛsɛ sɛ wodi akyi-akɔ soro nnwuma ho asɛm mu no, Aya remmɔ mmɔden biara sɛ ɔbɛboa adetɔfo ma wɔadi ɔhaw biara a ɛsɔre a ɛsɔre no ho dwuma, na ama wɔayi adetɔfo ho dadwen afi hɔ.
Aguade ho nkyerɛkyerɛmu .
Aguade no din . | Wing ti bolt . |
Wɔato din nso . | Wing thumb screw . |
Atadeɛ | Carbon dade . |
Susudua | ANSI/ASME B 18.17 . |
Diameter . | 6#,8#,10#,12#,1/4,5/16,3/8 |
Wie | oxide a ɛnyɛ den, tuntum, zinc a wɔde adura ho, a ɛyɛ den-Film passivated(ZSML), zinc flake, dwetɛ(zfshl), ɔhyew a wɔde ahyɛ mu, organic, geomet, dacromet, phostrating, cadmium electroplate, nickel a wɔde adura ho |
Gyinapɛn foforo . | DIN 7983, ASME B 18.6.3, ASME B 18.6.4, ASME B 18.6.5m, JIS B 1122 (O) . |
Ti no su . | ne ntaban . |
Drive Type . | ne nsa . |
Thread type . | UNC asaawa . |
Gyinapɛn foforo . | DIN 7505 (A), DIN 7505 (B) . |
Nsusuwii table .
| Norminal ntwemu . d | n | H | HL . | DK . | k | L | ||||||
| Max . | min . | Max . | min . | Max . | min . | Max . | min . | Max . | min . | Max . | min . | |
| #6 | 0. 78 | 0. 72 | 0. 40 | 0. 34 | 0.18 | 0.12 | 0. 40 | 0. 34 | 0. 21 | 0.14 | 0. 75 | 0. 25 |
| #8 | 0. 78 | 0. 72 | 0. 40 | 0. 34 | 0.18 | 0.12 | 0. 40 | 0. 34 | 0. 21 | 0.14 | 0. 75 | 0. 38 |
| #10 | 0. 90 | 0. 84 | 0. 46 | 0. 40 | 0. 21 | 0.15 | 0. 53 | 0. 47 | 0. 22 | 0.16 | 1 | 0. 38 |
| #12 | 1.09 | 1.03 | 0. 46 | 0. 40 | 0. 26 | 0. 20 | 0. 61 | 0. 55 | 0. 24 | 0.18 | 1 | 0. 38 |
| 1/4 | 1.09 | 1.03 | 0. 46 | 0. 40 | 0. 26 | 0. 20 | 0. 61 | 0. 55 | 0. 24 | 0.18 | 1.5 | 0. 50 |
| 5/16 | 1.31 | 1.25 | 0. 62 | 0. 56 | 0. 29 | 0. 23 | 0. 68 | 0. 62 | 0. 29 | 0. 23 | 1.5 | 0. 50 |
| 3/8 | 1.31 | 1.25 | 0. 62 | 0. 56 | 0. 29 | 0. 23 | 0. 68 | 0. 62 | 0. 29 | 0. 23 | 2. 00 | 0. 75 |
Aguade ho nsɛm .
Mfaso a ɛwɔ nneɛma a wɔyɛ so .
Mfaso a ɛwɔ ntaban ti bolt so .
1. Wobetumi de nsa apete so anaasɛ wɔde nsa ayi afi mu wɔ ɔkwan a ɛfata so a enhia mfiri.
2. Ɛnam nhyehyɛe soronko no so no, enhia torque pii dodo ma instɔlehyɛn no.
3. Wobetumi de ahyɛ mu a wɔde washers ahyɛ mu anaasɛ wɔmfa nka ho. Eyi ma instɔlehyɛn no yɛ mmerɛw na ɛyɛ ntɛm.
4. Nneɛma a wɔde yɛ nneɛma pii wɔ hɔ a ɛbɛma woatumi adi wo honam fam ne nnuru a wɔhwehwɛ no ho dwuma.
5. Aya ayɛ saa adeɛ yi bɛboro mfeɛ 10 na wɔwɔ osuahu a ɛdi mu a wɔde bedi ɔhaw ahodoɔ ho dwuma.
6. AYA wɔ adwumayɛfo bɛboro 200 a wɔn ho akokwaw a wobetumi adi ahyɛde akɛse biara ho dwuma anaasɛ ahyɛde a egye ntɛmpɛ.
Nhwehwɛmu a ɛyɛ papa .
Packaging & Container a Wɔde Gu Mu .
Nsɛm a wɔde di dwuma .
Dɛn nti na ɛsɛ sɛ wopaw Aya?
AYA de nnwuma a ɛyɛ soronko ma 1000+ asɔremma a wofi wiase nyinaa afe biara, a ɛwɔ nkɔnsɔnkɔnsɔn som ano aduru nhyehyɛe soronko, nea ehia ara ne sɛ wobɛbɔ mouse no so na woanya ano aduru a wɔde kyekyere nneɛma a ɛyɛ soronko na woanya ɔpon-to{2}}pon so nnwuma no mu anigye.
Tags a ɛyɛ hyew .: Wing Head Bolt, China, Wɔn a Wɔde Nneɛma Ma, Wɔn a Wɔyɛ, Adwumayɛbea, Kɔtɔ, Bo, Wɔtɔn, Wɔayɛ wɔ China
