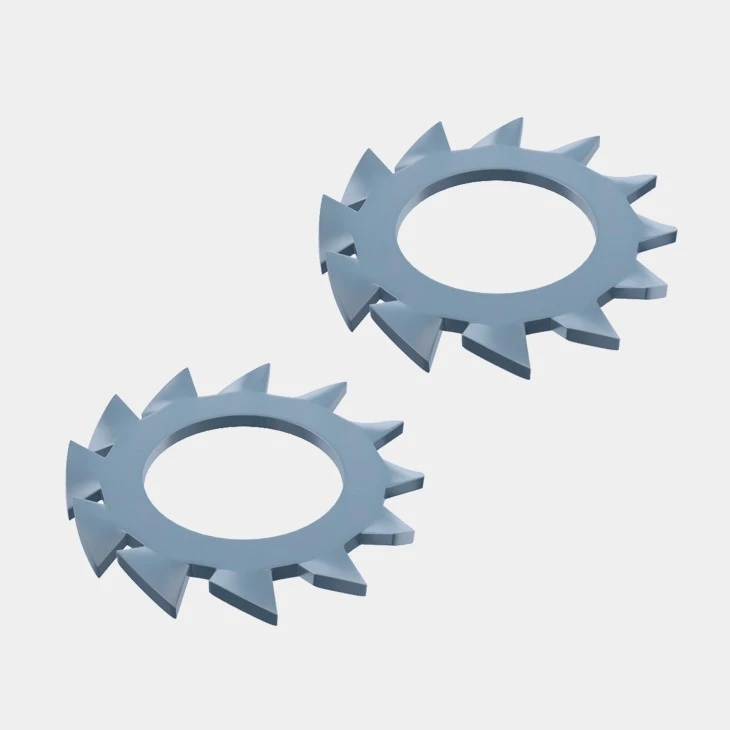

Abɔnten so sẽ washer .
Gyinapɛn: DIN 6797 (a) .
Aguadide: Abɔnten sẽ a wɔhoro .
Wɔtoo din nso: Abɔnten so sẽ a wɔde hohoro nneɛma ho .
Nneɛma a wɔde yɛ: Carbon dade .
ntwemu: 1.7, 2.2, 2.7, 3.2, 3.7, 4.3, 5.3, 6.4, 7.4, 8.4, 10.5, 13, 15, 17, 19, 21, 23, 25, 28, 311,
Sɛ wɔde asaawa: M1.6, m2, m2.5, m3, m3, m4, m5, m6, m7, m8, m10, m12, m14, m16, m18, m20, m22, m24, m27, m30 .
Awiei: oxide a ɛnyɛ den, tuntum, zinc a wɔde adura ho, ɔhyew a wɔde ahyɛ galvanized, oxidation, dacromet, phosphate, cadmium electroplate, nickel a wɔde adura ho
Gyinapɛn foforo: JIS B 1255 (B), ASME B 18.21.1, JIS B 1251 (T10-O), JIS B 1251, JIS B 1255 (C) .
MOQ: 1000kgs .
Bere a wɔde di kan: nnafua 30 kosi 60 .
Nneɛma a wɔde yɛ adwuma .
Aya Fasteners (Hebei) Co., Ltd. yɛ wɔn a wɔn ho akokwaw sen biara a wɔyɛ nneɛma a wɔde hohoro wɔn sẽ wɔ akyi wɔ China no mu biako. Yɛsrɛ sɛ ntwentwɛn wo nan ase sɛ wobɛtɔ abɔnten sẽ hohoro a ɛyɛ papa a wɔayɛ wɔ China wɔ ha fi yɛn adwumayɛbea hɔ. Sɛ wopɛ sɛ wo ne yɛn kɔ a, di yɛn ho nkɔmmɔ.
Sɛ́ wiase nyinaa adwumakuw a ɛde ano aduru a wɔde kyekyere nneɛma ho a wɔayɛ no sɛnea wɔpɛ no, Aya som adwuma no nso bɛn adetɔfo te sɛ Aya nneɛma. Efi hia a ɛsɛ sɛ wodi akyi-akɔ soro nnwuma ho asɛm mu no, Aya remmɔ mmɔden biara sɛ ɔbɛboa adetɔfo ma wɔadi ɔhaw biara a ɛsɔre a ɛsɔre no ho dwuma, na ama wɔayi adetɔfo ho dadwen afi hɔ.
Aguade ho nkyerɛkyerɛmu .
| Aguade no din . | Abɔnten so sẽ washer . |
| Wɔato din nso . | Abɔnten so sẽ a wɔde hohoro nneɛma ho . |
| Atadeɛ | Carbon dade . |
| Susudua | DIN 6797 (A) . |
| Diameter . | 1.7, 2.2, 2.7, 3.2, 3.7, 4.3, 5.3, 6.4, 7.4, 8.4, 10.5, 13, 15, 17, 19, 21, 23, 25, 28, 31 |
| ma asaawa . | M1.6, M2, M2.5, M3, M3.5, M4, M5, M6, M7, M8, M10, M12, M14, M16, M18, M20, M22, M24, M27, M30 |
| Wie | oxide a ɛnyɛ den, tuntum, zinc a wɔde adura ho, ɔhyew a wɔde ahyɛ galvanized mu, oxidation, dacromet, phosphate, cadmium electroplate, nickel a wɔde adura ho . |
| Gyinapɛn foforo . | JIS B 1255 (B), ASME B 18.21.1, JIS B 1251 (T10-O), JIS B 1251, JIS B 1255 (C) |
Nsusuwii table .
| Kɛseɛ | 1.7 | 2.2 | 2.7 | 3.2 | 3.7 | 4.3 | 5.3 | 6.4 | 7.4 | 8.4 | ||
| d | Min=Nkrabea kɛse . | 1.7 | 2.2 | 2.7 | 3.2 | 3.7 | 4.3 | 5.3 | 6.4 | 7.4 | 8.4 | |
| Max . | 1.84 | 2.34 | 2.84 | 3.38 | 3.88 | 4.48 | 5.48 | 6.62 | 7.62 | 8.62 | ||
| dc | Max=Nkrabea kɛse . | 3.6 | 4.5 | 5.5 | 6 | 7 | 8 | 10 | 11 | 12.5 | 15 | |
| min . | 3.3 | 4.2 | 5.2 | 5.7 | 6.64 | 7.64 | 9.64 | 10.57 | 12.07 | 14.57 | ||
| t | 0.3 | 0.3 | 0.4 | 0.4 | 0.5 | 0.5 | 0.6 | 0.7 | 0.8 | 0.8 | ||
| Nsõ dodow a ɛwɔ hɔ . | 6 | 6 | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 8 | ||
| ma nominal thread diameter . | M1.6 | M2 | M2.5 | M3 | M3.5 | M4 | M5 | M6 | M7 | M8 | ||
| Kɛseɛ | 10.5 | 13 | 15 | 17 | 19 | 21 | 23 | 25 | 28 | 31 | ||
| d | Min=Nkrabea kɛse . | 10.5 | 13 | 15 | 17 | 19 | 21 | 23 | 25 | 28 | 31 | |
| Max . | 10.77 | 13.27 | 15.27 | 17.27 | 19.33 | 21.33 | 23.33 | 25.33 | 28.33 | 31.39 | ||
| dc | Max=Nkrabea kɛse . | 18 | 20.5 | 24 | 26 | 30 | 33 | 36 | 38 | 44 | 48 | |
| min . | 17.57 | 19.98 | 23.48 | 25.48 | 29.48 | 32.38 | 35.38 | 37.38 | 43.38 | 47.38 | ||
| t | 0.9 | 1 | 1 | 1.2 | 1.4 | 1.4 | 1.5 | 1.5 | 1.6 | 1.6 | ||
| Nsõ dodow a ɛwɔ hɔ . | 9 | 10 | 10 | 12 | 12 | 12 | 14 | 14 | 14 | 14 | ||
| ma nominal thread diameter . | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | ||
Aguade ho nsɛm .
Mfaso a ɛwɔ nneɛma a wɔyɛ so .
Mfaso a ɛwɔ akyi sẽ so .
1. Saa akyi sẽ lock washer a efi Aya Fasteners line a ɛwɔ din pa no yɛ pɛpɛɛpɛ ma fastening ne fixing ahobammɔ.
.
3. Wɔde di dwuma wɔ mfiri anaa nneɛma a wɔtaa de wosow anaasɛ ɛkɔ so keka wɔn ho mu efisɛ wɔyɛ de hyɛ nneɛma a wɔde kyekyere nnesoa a ɛyɛ nnam ho den.
4. Yɛn locking washers no yɛ dadeɛ, a ɛyɛ dadeɛ a ɛnyɛ den, zinc a wɔde adura ho, anaasɛ nneɛma foforɔ a wɔde awie.
5. Wɔyɛɛ saa abɔnten tooth lock washers yi sɛ ɛbɛto screws, bolts, ne nuts wɔ ne sibea na ɛde ahobanbɔ a ɛkyɛn so ama wosow-a ɛma spacers no agyae.
6. Tooth lock washers no wɔ tooth-te sɛ serrations wɔ abɔnten diameter a ɛboa toothed washer no siw bolted joints kwan sɛ ɛbɛsan, denam friction a wɔde di dwuma no so.
Nhwehwɛmu a ɛyɛ papa .
Packaging & Container a Wɔde Gu Mu .
Nsɛm a wɔde di dwuma .
Dɛn nti na ɛsɛ sɛ wopaw Aya?
AYA de nnwuma a ɛyɛ soronko ma 1000+ asɔremma a wofi wiase nyinaa afe biara, a ɛwɔ nkɔnsɔnkɔnsɔn som ano aduru nhyehyɛe soronko, nea ehia ara ne sɛ wobɛbɔ mouse no so na woanya ano aduru a wɔde kyekyere nneɛma a ɛyɛ soronko na w’ani agye ɔpon-to{2}}pon so nnwuma ho.
Tags a ɛyɛ hyew .: External tooth washer, china, wɔn a wɔde nneɛma ma, wɔn a wɔyɛ, adwumayɛbea, tɔ, bo, wɔtɔn, wɔyɛɛ no wɔ China
