Nsɔano a wɔde hohoro nneɛma ho ma bolts .
Gyinapɛn: DIN 470 .
Aguadide: Nsɔano a wɔde hohoro nneɛma ho ma bolts .
Wɔtoo din nso: Nsɔano Discs DIN 470 .
Nneɛma a wɔde yɛ: Carbon dade .
Ntrɛwmu: 3, 4, 5, 6, 8, 10, 12, 14, 16, 18, 20, 22, 25, 28, (30), 32, 32, 36, 36, (38), 40, (42), 45, 0, 50, 50, 50, 50, 50, 50, 50, 50, 50, 50, 50, 50, 50, 50, 50, 5, no so 125 .
Awiei: oxide a ɛnyɛ den, tuntum, zinc a wɔde adura ho, ɔhyew a wɔde ahyɛ galvanized, oxidation, dacromet, phosphate, cadmium electroplate, nickel a wɔde adura ho
MOQ: 1000kgs .
Bere a wɔde di kan: nnafua 30 kosi 60 .
Nneɛma a wɔde yɛ adwuma .
Aya Fasteners (Hebei) Co., Ltd. yɛ wɔn a wɔn ho akokwaw sen biara a wɔyɛ nneɛma a wɔde hyɛ nsu mu a wɔde hyɛ nsu mu wɔ China no mu biako. Yɛsrɛ sɛ ntwentwɛn wo nan ase sɛ wobɛtɔ sealing washers a ɛkorɔn ama bolts a wɔayɛ wɔ China wɔ ha fi yɛn adwumayɛbea hɔ. Sɛ wopɛ sɛ wo ne yɛn kɔ a, di yɛn ho nkɔmmɔ.
Sɛ́ wiase nyinaa adwumakuw a ɛde ano aduru a wɔde kyekyere nneɛma ho a wɔayɛ no sɛnea wɔpɛ no, Aya som adwuma no nso bɛn adetɔfo te sɛ Aya nneɛma. Efi hia a ɛsɛ sɛ wodi akyi-akɔ soro nnwuma ho asɛm mu no, Aya remmɔ mmɔden biara sɛ ɔbɛboa adetɔfo ma wɔadi ɔhaw biara a ɛsɔre a ɛsɔre no ho dwuma, na ama wɔayi adetɔfo ho dadwen afi hɔ.
Aguade ho nkyerɛkyerɛmu .
Aguade no din . | Nsɔano a wɔde hohoro nneɛma ho ma bolts . |
Wɔato din nso . | Nsɔano Discs DIN 470 . |
Atadeɛ | Carbon dade . |
Susudua | DIN 470 . |
Diameter . | 3, 4, 5, 6, 8, 10, 12, 14, 16, 18, 20, 22, 25, 28, (30), 32, (34), 36, (38), 40, (42), 45, (48), 50, (52), 56, (60), 63, 80, 100, 125 |
Wie | oxide a ɛnyɛ den, tuntum, zinc a wɔde adura ho, ɔhyew a wɔde ahyɛ galvanized mu, oxidation, dacromet, phosphate, cadmium electroplate, nickel a wɔde adura ho . |
Nsusuwii table .
| nominal diameter . d | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | |
| d | Max . | 3.03 | 4.0375 | 5.0375 | 6.0375 | 8.045 | 10.045 | 12.055 | 14.055 | 16.055 |
| min . | 2.97 | 3.9625 | 4.9625 | 5.9625 | 7.955 | 9.955 | 11.945 | 13.945 | 15.945 | |
| H | 1.2 | 1.34 | 1.35 | 1.67 | 1.94 | 2.67 | 2.77 | 2.94 | 3.11 | |
| SR . | 3 | 4 | 6 | 7 | 9 | 12 | 16 | 19 | 22 | |
| h | Nominal size . | 0.8 | 0.8 | 0.8 | 1 | 1 | 1.6 | 1.6 | 1.6 | 1.6 |
| Max . | 0.95 | 0.95 | 0.95 | 1.15 | 1.15 | 1.75 | 1.75 | 1.75 | 1.75 | |
| min . | 0.65 | 0.65 | 0.65 | 0.85 | 0.85 | 1.45 | 1.45 | 1.45 | 1.45 | |
| 1000 biara mu biara≈kg . | ≈ | 0.047 | 0.084 | 0.132 | 0.236 | 0.517 | 1.05 | 1.49 | 2.02 | 2.63 |
| nominal diameter . d | 18 | 20 | 22 | 25 | 28 | -30 | 32 | -34 | 36 | |
| d | Max . | 18.055 | 20.065 | 22.065 | 25.065 | 28.065 | 30.065 | 32.08 | 34.08 | 36.08 |
| min . | 17.945 | 19.935 | 21.935 | 24.935 | 27.935 | 29.935 | 31.92 | 33.92 | 35.92 | |
| H | 3.28 | 3.45 | 4.09 | 4.38 | 4.53 | 4.77 | 4.95 | 5.11 | 5.36 | |
| SR . | 25 | 28 | 30 | 34 | 40 | 42 | 45 | 48 | 50 | |
| h | Nominal size . | 1.6 | 1.6 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Max . | 1.75 | 1.75 | 2.15 | 2.15 | 2.15 | 2.15 | 2.15 | 2.15 | 2.15 | |
| min . | 1.45 | 1.45 | 1.85 | 1.85 | 1.85 | 1.85 | 1.85 | 1.85 | 1.85 | |
| 1000 biara mu biara≈kg . | ≈ | 3.35 | 4.12 | 7.1 | 8.98 | 11.1 | 12.6 | 13.2 | 14.8 | 16.7 |
| nominal diameter . d | -38 | 40 | -42 | 45 | -48 | 50 | -52 | 56 | -60 | |
| d | Max . | 38.08 | 40.08 | 42.08 | 45.08 | 48.08 | 50.08 | 52.095 | 56.095 | 60.095 |
| min . | 37.92 | 39.92 | 41.92 | 44.92 | 47.92 | 49.92 | 51.905 | 55.905 | 59.905 | |
| H | 5.6 | 5.7 | 5.8 | 6.15 | 6.38 | 6.62 | 6.66 | 7.06 | 7.47 | |
| SR . | 52 | 56 | 60 | 63 | 68 | 70 | 75 | 80 | 85 | |
| h | Nominal size . | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Max . | 2.15 | 2.15 | 2.15 | 2.15 | 2.15 | 2.15 | 2.15 | 2.15 | 2.15 | |
| min . | 1.85 | 1.85 | 1.85 | 1.85 | 1.85 | 1.85 | 1.85 | 1.85 | 1.85 | |
| 1000 biara mu biara≈kg . | ≈ | 19.7 | 20.5 | 22.6 | 26.1 | 29.5 | 32.1 | 34.5 | 40.2 | 46.3 |
| nominal diameter . d | 63 | 80 | 100 | 125 | - | - | - | - | - | |
| d | Max . | 63.095 | 80.095 | 100.11 | 125.125 | - | - | - | - | - |
| min . | 62.905 | 79.905 | 99.89 | 124.875 | - | - | - | - | - | |
| H | 7.7 | 10.41 | 12.23 | 14.2 | - | - | - | - | - | |
| SR . | 90 | 112 | 140 | 180 | - | - | - | - | - | |
| h | Nominal size . | 2 | 3 | 3 | 3 | - | - | - | - | - |
| Max . | 2.15 | 3.15 | 3.15 | 3.15 | - | - | - | - | - | |
| min . | 1.85 | 2.85 | 2.85 | 2.85 | - | - | - | - | - | |
| 1000 biara mu biara≈kg . | ≈ | 50.9 | 134 | 204 | 313 | - | - | - | - | - |
Aguade ho nsɛm .
Nneɛma a wɔde yɛ adwuma no mu mfaso .
Mfaso a ɛwɔ so sɛ wɔbɛsɔ nneɛma a wɔde hohoro nneɛma mu ano .
1. Vibration resistance a ɛwɔ sealing washers no mu ma bolts no ye yiye.
2. Nsɔano discs DIN 470 no tumi hyɛ mu na ɛto mu bere koro mu.
3. Nsɔano washer no wɔ biako-afã a ɛyɛ asinasin.
4. High-Nneɛma a ɛyɛ papa, ne washers nkwa nna tenten.
5. Ne nyinaa-process tracking quality monitoring hwɛ hu sɛ bulk quality a ɛwɔ sealing washers mu.
6. Aya wɔ osuahu a ɛyɛ fɛ wɔ fastener field no mu.

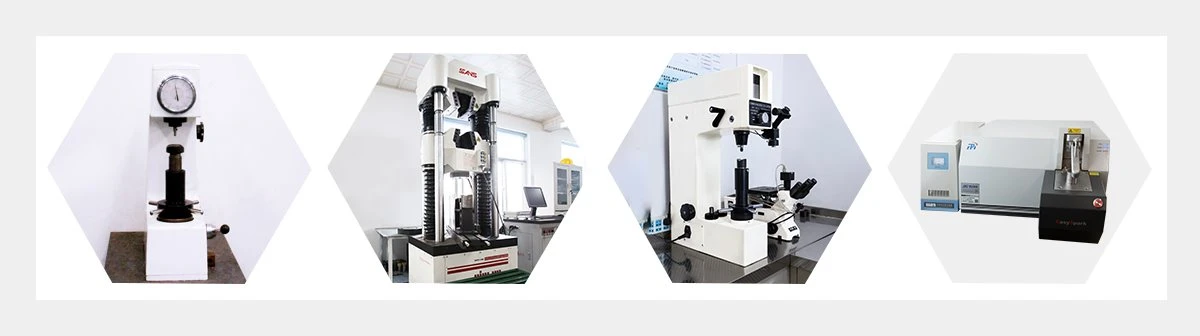

Nhwehwɛmu a ɛyɛ papa .
Wɔde emu nhyehyɛe no mu nhwehwɛmu di dwuma daa de hwɛ hu sɛ nneɛma a wɔyɛ no tu mpɔn.
Quality guarantee ne nea ɛfa sɔhwɛ ho no yɛ ade titiriw a ɛma fastener no yɛ. Wɔ AYA mu no, wɔyɛ nhwehwɛmu a ɛkɔ akyiri dodow no ara de hwehwɛ fastener no mu denam quantitative analysis kwan no so. Awiei koraa no, nea efi mu ba no ho amanneɛbɔ a edi mũ no ankasa bɛda no adi sɛ ɛyɛ papa.
Packaging & Container a Wɔde Gu Mu .
Aya de ade a wɔde kyekyere nneɛma ho no R&D ho hia kɛse bere nyinaa na ama sɛnea ɛte no atu mpɔn na afei nso akyɛ wɔ nneɛma a wɔde mena no mu.
100% wɔ-bere a wɔde ma ho bɔhyɛ so.
Nsɛm a wɔde di dwuma .
Dɛn nti na ɛsɛ sɛ wopaw Aya?
AYA de nnwuma a ɛyɛ soronko ma 1000+ asɔremma a wofi wiase nyinaa afe biara, a ɛwɔ nkɔnsɔnkɔnsɔn som ano aduru nhyehyɛe soronko, nea ehia ara ne sɛ wobɛbɔ mouse no so na woanya ano aduru a wɔde kyekyere nneɛma a ɛyɛ soronko na woanya ɔpon-to{2}}pon so nnwuma no mu anigye.
Tags a ɛyɛ hyew .: Sealing washers ma bolts, china, suppliers, manufacturers, factory, buy, bo, wɔtɔn, wɔayɛ wɔ China
